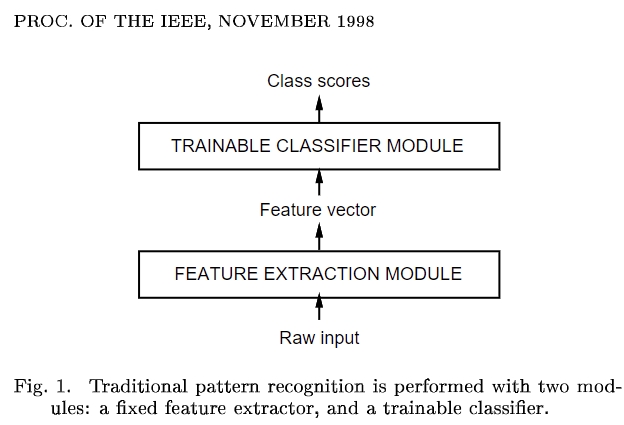

Raw input :原始数据

Feature Extraction Module : 特征提取/抽取模块，就是当前的模型要完成的功能

Feature vactor: 特征向量，可用于分类的特征向量

Trainable Classifier Module : 可训练的分类器，就是现在的分类层


机器学习数据特征提取，靠人工

深度学习数据特征提取，Feature Extraction Module，由神经网络（即模型）提取
- 但这并不是说，深度学习就不能人工提取特征了
- 对于一些交易场景，有其独特的业务含义，
- 人工特征的提取是有助于神经网络推理的
- 但机器学习是一定需要人工提取特征的


然后通过全连接映射到业务的类别上
- 2分类映射到2维向量上
- n分类映射到n维向量上

深度学习输入数据，比如一张图像，然后映射到某个类别上

深度学习
原始数据 -- 模型 -- 分类 -- 标签类别

机器学习
原始数据 -- 特征工程 -- 模型 -- 标签类别

深度学习灵魂三问：


输入是什么？
输出是什么？
试图实现什么操作？要赋予网络什么样的功能？


图像分类模型


LeNet

AlexNet

VggNet

InceptionNet

ResNet

深度学习的本质


矩阵相乘，线性变换

要清楚不同维度代表的含义，即矩阵shape的业务含义




concat 拼接 -- InceptionNet

add 相加 -- ResNet

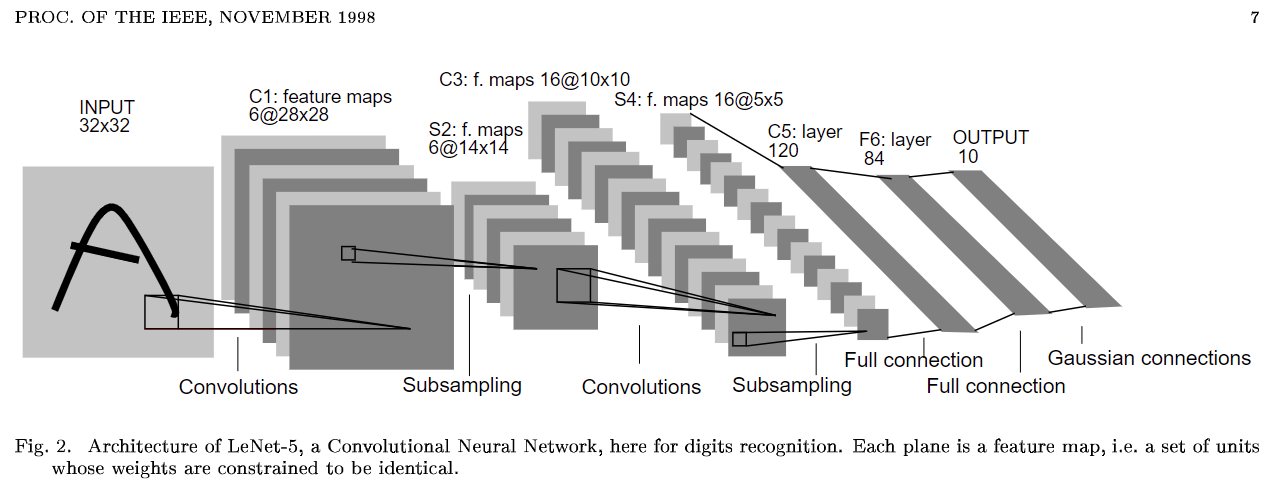

输入输出
- 输入是原始数据，一张图片，[B,1,32,32]
- 输出是10个类别的向量

特征提取
- 卷积改变特征数，逐渐变大，   1 -- 6  -- 6  -- 16 -- 16
- 特征图下采样，图形逐渐变小 ，32-- 28 -- 14 -- 14 -- 5


分类
- 按批次展平，一张图片的数据展平为一个向量，全连接映射到类别

下采样


每四个格取一个
- 每隔一个取一个 ：方式有些古板
- 随机取一个
- 平均值 ：信息丢失最少
- 最小值
- 最大值

这也是池化层的操作，
- 池化层无参数，只是一种计算方式
- 池化不改变特征层/数，只是一种下采样方式，收缩的是特征图的大小

LeNet论文复现


import torch
from torch import nn
from torch.nn import functional as F


class LeNet(nn.Module):
    """
        定义一个LeNet
    """

    def __init__(self):
        super(LeNet, self).__init__()
        # 1
        self.conv1 = nn.Conv2d(in_channels=1, out_channels=6, kernel_size=3, stride=1, padding=0)
        self.pool1 = nn.MaxPool2d(kernel_size=2, stride=2, padding=0)
        self.relu1 = nn.ReLU()

        # 2
        self.conv2 = nn.Conv2d(in_channels=6, out_channels=16, kernel_size=3, stride=1, padding=0)
        self.pool2 = nn.MaxPool2d(kernel_size=2, stride=2, padding=0)
        self.relu2 = nn.ReLU()

        # 展平层
        self.flatten = nn.Flatten()

        # 分类层,这一步输入的特征数是上一步向量的特征维数，是固定的
        self.fc1 = nn.Linear(in_features=576, out_features=256)
        self.fc2 = nn.Linear(in_features=256, out_features=128)
        self.fc3 = nn.Linear(in_features=128, out_features=10)


    def forward(self,x):

        # [B, 1, 32, 32] --> [B, 6, 30, 30]
        x = self.conv1(x)

        # [B, 6, 30, 30] --> [B, 6, 15, 15]
        x = self.pool1(x)

        x = self.relu1(x)

        # [B, 6, 15, 15] --> [B, 16, 13, 13]
        x = self.conv2(x)

        # [B, 16, 13, 13] --> [B, 16, 6, 6]
        x = self.pool2(x)

        x = self.relu2(x)

        # [B, 16, 6, 6] --> [B, 576]
        x = self.flatten(x)

        # [B, 576] --> [B, 256]
        x = self.fc1(x)

        # [B, 256] --> [B, 128]
        x = self.fc2(x)

        # [B, 128] --> [B, 10]
        x = self.fc3(x)

        return x


batch_size = 32 #批次
features = 1    #黑白图片
img_h = 32      #高32个像素，就是32个特征
img_w = 32
out_feature = 10 #10分类问题，输出10个特征

data = torch.randn(batch_size,features,img_h,img_w)


lenet = LeNet()
lenet(data).shape  #torch.Size([32, 10])

数据集


使用封装好的 手写数字数据集


import numpy as np
import torch
from torch import nn
from torch.nn import functional as F

from torch.utils.data import Dataset
from torch.utils.data import DataLoader
from torchvision import datasets

from tpf.params import ImgPath
from tpf import pkl_load,pkl_save

# 数据加载测试
class MyDataset(Dataset):
    """手写数字数据集
    """
    def __init__(self, fil):
        """超参数初始化
        """
        self.img_list = pkl_load(file_path=fil)

    def __getitem__(self, idx):
        """读取图像及标签
        """
        return self.img_list[idx][0], self.img_list[idx][1]

    def __len__(self):
        """数据集大小
        """
        return len(self.img_list)



train_dataset = MyDataset(fil=ImgPath.mnist_data_train)
print(len(train_dataset))  # 60000

test_dataset = MyDataset(fil=ImgPath.mnist_data_test)
print(len(test_dataset))  # 10000

# 训练集加载器
train_dataloader = DataLoader(dataset=train_dataset, batch_size=512, shuffle=True)

# 测试集加载器
test_dataloader = DataLoader(dataset=test_dataset, batch_size=512, shuffle=False)


# 1个批次512个样本，一个像素用一个数值表示，shape为[32,32]
for X,y in train_dataloader:
    print(X.shape,y.shape)  #torch.Size([512, 1, 32, 32]) torch.Size([512])
    break



# 是否有GPU
device = "cuda:0" if torch.cuda.is_available() else "cpu"

class LeNet(nn.Module):
    """
        定义一个LeNet
    """

    def __init__(self):
        super(LeNet, self).__init__()
        # 1
        self.conv1 = nn.Conv2d(in_channels=1, out_channels=6, kernel_size=3, stride=1, padding=0)
        self.pool1 = nn.MaxPool2d(kernel_size=2, stride=2, padding=0)
        self.relu1 = nn.ReLU()

        # 2
        self.conv2 = nn.Conv2d(in_channels=6, out_channels=16, kernel_size=3, stride=1, padding=0)
        self.pool2 = nn.MaxPool2d(kernel_size=2, stride=2, padding=0)
        self.relu2 = nn.ReLU()

        # 展平层
        self.flatten = nn.Flatten()

        # 分类层,这一步输入的特征数是上一步向量的特征维数，是固定的
        self.fc1 = nn.Linear(in_features=576, out_features=256)
        self.fc2 = nn.Linear(in_features=256, out_features=128)
        self.fc3 = nn.Linear(in_features=128, out_features=10)


    def forward(self,x):

        # [B, 1, 32, 32] --> [B, 6, 30, 30]
        x = self.conv1(x)

        # [B, 6, 30, 30] --> [B, 6, 15, 15]
        x = self.pool1(x)

        x = self.relu1(x)

        # [B, 6, 15, 15] --> [B, 16, 13, 13]
        x = self.conv2(x)

        # [B, 16, 13, 13] --> [B, 16, 6, 6]
        x = self.pool2(x)

        x = self.relu2(x)

        # [B, 16, 6, 6] --> [B, 576]
        x = self.flatten(x)

        # [B, 576] --> [B, 256]
        x = self.fc1(x)

        # [B, 256] --> [B, 128]
        x = self.fc2(x)

        # [B, 128] --> [B, 10]
        x = self.fc3(x)

        return x

model = LeNet()
loss_fn = nn.CrossEntropyLoss()
optim = torch.optim.Adam(params=model.parameters(),lr=1e-3)


epoch = 1
for i in range(epoch):
    for X,y in train_dataloader:
        #模型正向传播
        y_pred = model(X)

        #损失函数梯度清空后，反向求导
        optim.zero_grad()
        loss = loss_fn(y_pred,y)
        optim.step()

        break



y_pred
tensor([[-0.0286, -0.0236,  0.1188,  ...,  0.0632,  0.1109,  0.0093],
        [-0.0314, -0.0266,  0.1238,  ...,  0.0644,  0.1135,  0.0147],
        [-0.0187, -0.0252,  0.1177,  ...,  0.0884,  0.1284,  0.0191],
        ...,
        [-0.0311, -0.0226,  0.1131,  ...,  0.0634,  0.1191,  0.0106],
        [-0.0297, -0.0279,  0.1152,  ...,  0.0972,  0.1198,  0.0182],
        [-0.0207, -0.0258,  0.1170,  ...,  0.0877,  0.1053,  0.0122]],
       grad_fn=AddmmBackward0)


def get_loss(dataloader, model, loss_fn, device=device):
    """全体数据集/整个分布 模型输出与标签之间的 平均 偏差/损失
    """
    # 把模型设置为评估模式
    model.eval()
    losses = []
    with torch.no_grad():
        for X,y in dataloader:
            X = X.to(device=device)
            y = y.to(device=device)
            y_pred = model(X)
            loss = loss_fn(y_pred, y)
            losses.append(loss.item())
        return round(np.array(losses).mean(), ndigits=3)

def get_acc(dataloader, model=model, device=device):
    """分类问题精度计算
    - 精度是针对整个数据集的
    """
    # 把模型设置为评估模式
    model.eval()
    accs = []
    with torch.no_grad():
        for X, y in dataloader:
            X = X.to(device=device)
            y = y.to(device=device)
            y_pred = model(X)
            y_pred = y_pred.argmax(dim=-1)
            acc = (y_pred == y).float().mean()
            accs.append(acc.item())
        return round(np.array(accs).mean(), ndigits=3)



# 模型参数搬家
model.to(device=device)

def train(dataloader=train_dataloader, model=model, loss_fn=loss_fn,
            optimizer=optim, epochs=2):
    print(f"自然准确率：Train_Acc:{get_acc(dataloader=train_dataloader)}, Test_Acc: {get_acc(dataloader=test_dataloader)}")

    # 循环训练epocs轮次
    for epoch in range(1, epochs+1):
        # 把模型设置为训练模型
        model.train()
        # 每轮都按批量训练
        for X, y in dataloader:

            X = X.to(device=device)
            y = y.to(device=device)

            # 正向传播
            y_pred = model(X)

            # 计算损失
            loss = loss_fn(y_pred, y)

            # 梯度清空
            optimizer.zero_grad()

            # 反向传播
            loss.backward()

            # 参数优化
            optimizer.step()

        print(f"Epoch: {epoch}, Train_Acc:{get_acc(dataloader=train_dataloader)}, Test_Acc: {get_acc(dataloader=test_dataloader)}")


train(epochs=2)



自然准确率：Train_Acc:0.098, Test_Acc: 0.095
Epoch: 1, Train_Acc:0.932, Test_Acc: 0.938
Epoch: 2, Train_Acc:0.966, Test_Acc: 0.969

通常仅保存参数


model.state_dict()

OrderedDict([('conv1.weight',
              tensor([[[[ 0.1514, -0.0253,  0.3065],
                        [ 0.1495,  0.3303, -0.2056],
                        [ 0.3438, -0.0484,  0.3366]]],
                。。。。。
                       [ 1.0156e-01, -1.4222e-01, -3.5859e-02]]]])),
             ('conv2.bias',
              tensor([-0.0321, -0.1062,  0.0668,  0.0728,  0.0881, -0.1327,  0.0257, -0.0702,
                       0.0444,  0.0858,  0.1039,  0.0888, -0.0225,  0.0063,  0.1431, -0.1209])),
             ('fc1.weight',
              tensor([[ 0.0078,  0.0408,  0.0449,  ...,  0.0143,  0.0387,  0.0377],
                      ...,
                     [-0.0238, -0.0331,  0.0028,  ..., -0.0578, -0.0317, -0.0269]])),
             ('fc1.bias',
              tensor([-3.6302e-02, -2.9473e-02, -4.6407e-02,  2.9217e-02, -3.2748e-02,
                     。。。。。。

                       4.5190e-02])),
             ('fc2.weight',
              tensor([[ 0.0387,  0.0094, -0.0014,  ..., -0.0519, -0.0089, -0.0399],
                    ...,
                    [ 0.0345, -0.0245, -0.0230,  ..., -0.0107, -0.0671,  0.0299]])),
             ('fc2.bias',
              tensor([-0.0255,  0.0335,  0.0006, -0.0283,  0.0003,  0.0603, -0.0160, -0.0432,
                。。。。。
                      0.0479, -0.0003, -0.0592, -0.0500, -0.0101,  0.0607,  0.0329,  0.0077])),
             ('fc3.weight',
              tensor([[ 0.0855,  0.0188,  0.0714,  ..., -0.0760,  0.0899,  0.0265],
                    ...,
                    [-0.0751, -0.0957,  0.1219,  ...,  0.0270, -0.1015, -0.0457]])),
             ('fc3.bias',
              tensor([-0.0875, -0.0108,  0.0775, -0.0821, -0.0394, -0.0221, -0.0566,  0.0552,
                       0.0577, -0.0431]))])


torch.save(obj=model.state_dict(), f="lenet.pt")

模型参数加载


import numpy as np
import torch
from torch import nn
from torch.nn import functional as F

from torchvision import transforms


# 是否有GPU
device = "cuda:0" if torch.cuda.is_available() else "cpu"

class LeNet(nn.Module):
    """
        定义一个LeNet
    """

    def __init__(self):
        super(LeNet, self).__init__()
        # 1
        self.conv1 = nn.Conv2d(in_channels=1, out_channels=6, kernel_size=3, stride=1, padding=0)
        self.pool1 = nn.MaxPool2d(kernel_size=2, stride=2, padding=0)
        self.relu1 = nn.ReLU()

        # 2
        self.conv2 = nn.Conv2d(in_channels=6, out_channels=16, kernel_size=3, stride=1, padding=0)
        self.pool2 = nn.MaxPool2d(kernel_size=2, stride=2, padding=0)
        self.relu2 = nn.ReLU()

        # 展平层
        self.flatten = nn.Flatten()

        # 分类层,这一步输入的特征数是上一步向量的特征维数，是固定的
        self.fc1 = nn.Linear(in_features=576, out_features=256)
        self.fc2 = nn.Linear(in_features=256, out_features=128)
        self.fc3 = nn.Linear(in_features=128, out_features=10)


    def forward(self,x):

        # [B, 1, 32, 32] -- [B, 6, 30, 30]
        x = self.conv1(x)

        # [B, 6, 30, 30] -- [B, 6, 15, 15]
        x = self.pool1(x)

        x = self.relu1(x)

        # [B, 6, 15, 15] -- [B, 16, 13, 13]
        x = self.conv2(x)

        # [B, 16, 13, 13] -- [B, 16, 6, 6]
        x = self.pool2(x)

        x = self.relu2(x)

        # [B, 16, 6, 6] -- [B, 576]
        x = self.flatten(x)

        # [B, 576] -- [B, 256]
        x = self.fc1(x)

        # [B, 256] -- [B, 128]
        x = self.fc2(x)

        # [B, 128] -- [B, 10]
        x = self.fc3(x)

        return x

model = LeNet()


# 加载权重
model.load_state_dict(state_dict=torch.load(f="lenet.pt"), )

model.state_dict()


OrderedDict([('conv1.weight',
tensor([[[[ 0.1514, -0.0253,  0.3065],
            [ 0.1495,  0.3303, -0.2056],
            [ 0.3438, -0.0484,  0.3366]]],

            ...
            ...
            ...
)))

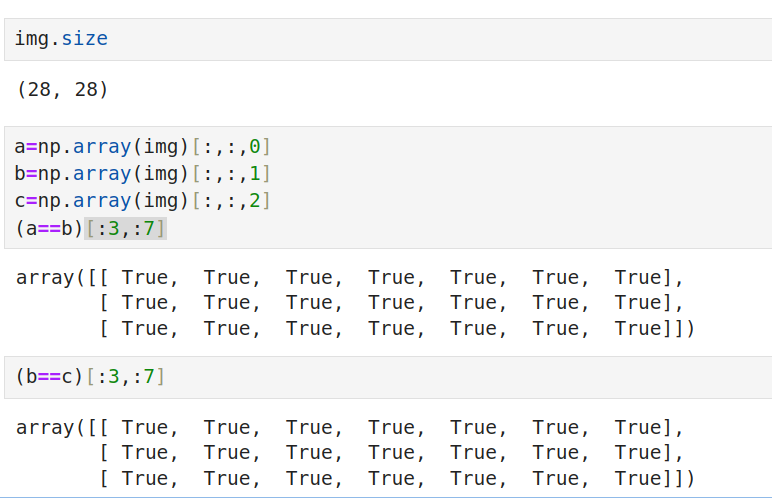

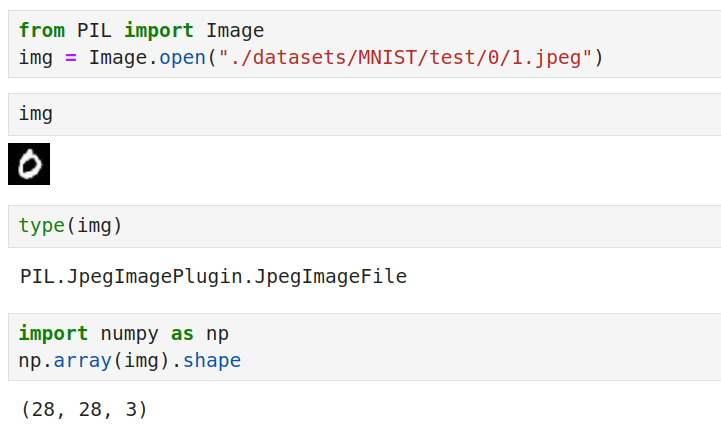

直接读取图片


# PyTorch 三剑客
import torch
from torch import nn
from torch.nn import functional as F

# 数据打包工具
from torch.utils.data import Dataset
from torch.utils.data import DataLoader

# 图像处理工具
from matplotlib import pyplot as plt
from PIL import Image
import cv2
from torchvision import transforms

# 通用科学计算神器
import numpy as np


# 解决 OMP问题
import os
os.environ["KMP_DUPLICATE_LIB_OK"]="TRUE"

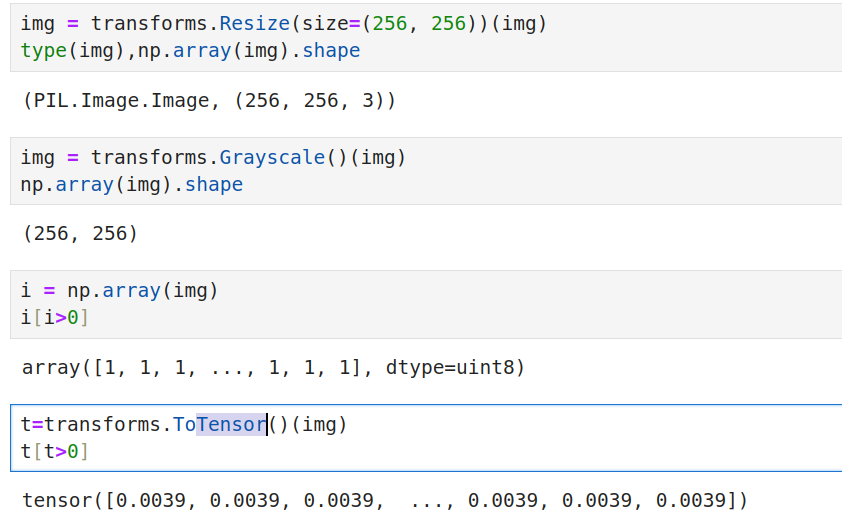

# 定义预处理
trans = transforms.Compose([
    transforms.Grayscale(),
    transforms.Resize(size=(32,32)),
    transforms.ToTensor()
])


class MyDataset(Dataset):
    """
        自定义数据集
    """
    def __init__(self, anno_info=None, trans=trans):
        """
            初始化：负责接收超参
        """
        self.anno_info = anno_info
        self.trans = trans
        self.images = self._read()

    def _read(self):
        with open(file=self.anno_info, mode="r", encoding="utf8") as f:
            images = [line.strip().split(",") for line in f.readlines()]
            return images


    def __getitem__(self, idx):
        """
            实现下标读取（索引）
        """
        img_path, label = self.images[idx]
        img = Image.open(fp=img_path)
        return self.trans(img), torch.tensor(data=int(label)).long()

    def __len__(self):
        """
            获取数据量
        """
        return len(self.images)

# 构建训练集的数据加载器
train_dataset = MyDataset(anno_info="train.csv",)
train_dataloader = DataLoader(dataset=train_dataset, batch_size=512, shuffle=True)


# 构建测试集的数据加载器
test_dataset = MyDataset(anno_info="test.csv")
test_dataloader = DataLoader(dataset=test_dataset, batch_size=512, shuffle=False)


import numpy as np
import torch
from torch import nn
from torch.nn import functional as F

# 图像处理工具
from matplotlib import pyplot as plt
from PIL import Image
import cv2
from torchvision import transforms


# 是否有GPU
device = "cuda:0" if torch.cuda.is_available() else "cpu"

class LeNet(nn.Module):
    """
        定义一个LeNet
    """

    def __init__(self):
        super(LeNet, self).__init__()
        # 1
        self.conv1 = nn.Conv2d(in_channels=1, out_channels=6, kernel_size=3, stride=1, padding=0)
        self.pool1 = nn.MaxPool2d(kernel_size=2, stride=2, padding=0)
        self.relu1 = nn.ReLU()

        # 2
        self.conv2 = nn.Conv2d(in_channels=6, out_channels=16, kernel_size=3, stride=1, padding=0)
        self.pool2 = nn.MaxPool2d(kernel_size=2, stride=2, padding=0)
        self.relu2 = nn.ReLU()

        # 展平层
        self.flatten = nn.Flatten()

        # 分类层,这一步输入的特征数是上一步向量的特征维数，是固定的
        self.fc1 = nn.Linear(in_features=576, out_features=256)
        self.fc2 = nn.Linear(in_features=256, out_features=128)
        self.fc3 = nn.Linear(in_features=128, out_features=10)


    def forward(self,x):

        # [B, 1, 32, 32] --> [B, 6, 30, 30]
        x = self.conv1(x)

        # [B, 6, 30, 30] --> [B, 6, 15, 15]
        x = self.pool1(x)

        x = self.relu1(x)

        # [B, 6, 15, 15] --> [B, 16, 13, 13]
        x = self.conv2(x)

        # [B, 16, 13, 13] --> [B, 16, 6, 6]
        x = self.pool2(x)

        x = self.relu2(x)

        # [B, 16, 6, 6] --> [B, 576]
        x = self.flatten(x)

        # [B, 576] --> [B, 256]
        x = self.fc1(x)

        # [B, 256] --> [B, 128]
        x = self.fc2(x)

        # [B, 128] --> [B, 10]
        x = self.fc3(x)

        return x

model = LeNet()


# 加载权重
model.load_state_dict(state_dict=torch.load(f="lenet.pt"), )

# 定义预处理
trans = transforms.Compose([
    transforms.Grayscale(),
    transforms.Resize(size=(32,32)),
    transforms.ToTensor()
])

def predict(img_path="./0.jpeg", model=model, trans=trans):
    """
        预测图像
    """
    # 1，模型设置为推断模式
    model.eval()

    # 2, 读取图像
    img = Image.open(fp=img_path)
    img = torch.unsqueeze(input=trans(img), dim=0).to(device=device)
    with torch.no_grad():
        y_pred = model(img)
        y_pred = y_pred.argmax(dim=-1)
        return y_pred.item()

# 推断函数

print(predict(img_path="./0.jpeg"))
print(predict(img_path="./1.jpeg"))
print(predict(img_path="./2.jpeg"))
print(predict(img_path="./3.jpeg"))
print(predict(img_path="./4.jpeg"))


import torch
from torch import nn
from torch.nn import functional as F

class LeNet2(nn.Module):

    def __init__(self,n_classes=10):
        """LeNet优化版
        - 输入:32*32固定大小图片,格式[B,C,32,32]
        - 输出:批次的类别，格式[B, n_classes]
        """
        super().__init__()
        self.n_classes = n_classes

        # 第 1 层, [B, 1, 32, 32] --  [B, 16, 16, 16]
        self.layer1 = nn.Sequential(
            nn.Conv2d(in_channels=1, out_channels=6, kernel_size=3, stride=1, padding=1),
            nn.BatchNorm2d(num_features=6),
            nn.ReLU(),
            nn.MaxPool2d(kernel_size=2, stride=2, padding=0)
        )

        # 第 2 层, [B, 6, 16, 16] -- [B, 16, 8, 8], 层数多少会影响模型收敛速度
        self.layer2 = nn.Sequential(
            nn.Conv2d(in_channels=6, out_channels=16, kernel_size=3, stride=1, padding=1),
            nn.BatchNorm2d(num_features=16),
            nn.ReLU(),
            nn.MaxPool2d(kernel_size=2, stride=2, padding=0)
        )

        # 分类
        self.classifier = nn.Sequential(
            nn.Linear(in_features=16*8*8, out_features=1024),
            nn.Dropout(p=0.3),
            nn.Linear(in_features=1024, out_features=256),
            nn.Dropout(p=0.2),
            nn.Linear(in_features=256, out_features=self.n_classes)
        )


    def forward(self,x):

        # [B, 1, 32, 32] --  [B, 6, 16, 16]
        h = self.layer1(x)

        # [B, 6, 16, 16] -- [B, 16, 8, 8]
        h = self.layer2(h)

        # 维度转换 [B, 16, 8, 8] -- [B, 16*8*8=1024]
        h = h.view(h.size(0), -1)

        # [B, 1024] -- [B, 10]
        o = self.classifier(h)

        return o

def test_LeNet2():
    model = LeNet2()
    x = torch.randn(size=(32,1,32,32))
    y = model(x)
    print(y.shape)  # torch.Size([32, 10])


由于数据集非常足且非常好，没有噪声，脏数据，100%纯

因此此网络去除BN后完全不影响最终精度，
只是第一次收敛比有BN的第一次收敛速度点了一点点


这里提到的数据集的量与纯度也非常重要

依赖包安装


pip install opencv-python-headless -i https://pypi.tuna.tsinghua.edu.cn/simple
pip install opencv-python -i https://pypi.tuna.tsinghua.edu.cn/simple

单张图片读取


这是一张28×28尺寸的图像，有三色，但三色都是一样的
这意味着，训练时取三色中的一色即可



resize尺寸处理

灰度处理

归一化+转Tensor，这里的归一是除以 255，并没有拉到标准正态分布


#拉到指定的正态分布
transforms.Normalize(mean=[0.5], std=[0.5])(img)


依赖包安装


pip install opencv-python-headless -i https://pypi.tuna.tsinghua.edu.cn/simple
pip install opencv-python -i https://pypi.tuna.tsinghua.edu.cn/simple


# PyTorch 三剑客
import torch
from torch import nn
from torch.nn import functional as F

# 数据打包工具
from torch.utils.data import Dataset
from torch.utils.data import DataLoader

# 图像处理工具
from matplotlib import pyplot as plt
from PIL import Image
import cv2
from torchvision import transforms

# 通用科学计算神器
import numpy as np

# 解决 OMP问题
import os
os.environ["KMP_DUPLICATE_LIB_OK"]="TRUE"

# 测试是否有GPU
device = "cuda:0" if torch.cuda.is_available() else "cpu"



import os

def get_image_paths(root_dir):
    image_paths = []
    for root, dirs, files in os.walk(root_dir):
        for file in files:
            if file.endswith(".jpeg") or file.endswith(".jpg") or file.endswith(".png"):
                image_path = os.path.join(root, file)
                label = os.path.basename(root)
                image_paths.append([image_path, label])
    return image_paths

# 指定数据集目录
mnist_dir = "/wks/datasets/MNIST"

# 获取测试集和训练集的图片路径
test_list = get_image_paths(os.path.join(mnist_dir, "test"))
train_list = get_image_paths(os.path.join(mnist_dir, "train"))

print(len(test_list))
print(len(train_list))

# 打印结果
print("测试集图片路径:")
for path, label in test_list:
    print(f"图片路径: {path}, 标签: {label}")
    break

print("\n训练集图片路径:")
for path, label in train_list:
    print(f"图片路径: {path}, 标签: {label}")
    break



10000
60000
测试集图片路径:
图片路径: /wks/datasets/MNIST/test/3/715.jpeg, 标签: 3

训练集图片路径:
图片路径: /wks/datasets/MNIST/train/3/1152.jpeg, 标签: 3


class MyDataset(Dataset):
    """
        手写数字数据集
    """
    def __init__(self, data_list=None):
        """自定义数据集
        """
        # 定义预处理
        self.trans = transforms.Compose([
            transforms.Grayscale(),
            transforms.Resize(size=(32,32)),
            transforms.ToTensor()
        ])
        self.images = data_list


    def __getitem__(self, idx):
        """
            实现下标读取（索引）
        """
        img_path, label = self.images[idx]
        img = Image.open(fp=img_path)
        return self.trans(img), torch.tensor(data=int(label)).long()

    def __len__(self):
        """
            获取数据量
        """
        return len(self.images)


# 构建训练集的数据加载器
train_dataset = MyDataset(data_list=train_list)
train_dataloader = DataLoader(dataset=train_dataset, batch_size=512, shuffle=True)


# 构建测试集的数据加载器
test_dataset = MyDataset(data_list=test_list)
test_dataloader = DataLoader(dataset=test_dataset, batch_size=512, shuffle=False)


test_dataset[0]
(tensor([[[0.0118, 0.0039, 0.0000,  ..., 0.0000, 0.0000, 0.0000],
          [0.0157, 0.0157, 0.0078,  ..., 0.0000, 0.0000, 0.0000],
          [0.0039, 0.0078, 0.0157,  ..., 0.0000, 0.0000, 0.0000],
          ...,
          [0.0000, 0.0000, 0.0000,  ..., 0.0000, 0.0000, 0.0000],
          [0.0000, 0.0000, 0.0000,  ..., 0.0000, 0.0000, 0.0000],
          [0.0000, 0.0000, 0.0000,  ..., 0.0000, 0.0000, 0.0000]]]),
 tensor(3))


class LeNet(nn.Module):
"""
    定义一个LeNet
"""

def __init__(self):
    super(LeNet, self).__init__()
    # 1
    self.conv1 = nn.Conv2d(in_channels=1, out_channels=6, kernel_size=3, stride=1, padding=0)
    self.pool1 = nn.MaxPool2d(kernel_size=2, stride=2, padding=0)
    self.relu1 = nn.ReLU()

    # 2
    self.conv2 = nn.Conv2d(in_channels=6, out_channels=16, kernel_size=3, stride=1, padding=0)
    self.pool2 = nn.MaxPool2d(kernel_size=2, stride=2, padding=0)
    self.relu2 = nn.ReLU()

    # 展平层
    self.flatten = nn.Flatten()

    # 分类层
    self.fc1 = nn.Linear(in_features=576, out_features=256)

    self.fc2 = nn.Linear(in_features=256, out_features=128)

    self.fc3 = nn.Linear(in_features=128, out_features=10)


def forward(self,x):

    # [B, 1, 32, 32] -- [B, 6, 30, 30]
    x = self.conv1(x)

    # [B, 6, 30, 30] -- [B, 6, 15, 15]
    x = self.pool1(x)

    x = self.relu1(x)

    # [B, 6, 15, 15] -- [B, 16, 13, 13]
    x = self.conv2(x)

    # [B, 16, 13, 13] -- [B, 16, 6, 6]
    x = self.pool2(x)

    x = self.relu2(x)

    # [B, 16, 6, 6] -- [B, 576]
    x = self.flatten(x)

    # [B, 576] -- [B, 256]
    x = self.fc1(x)

    # [B, 256] -- [B, 128]
    x = self.fc2(x)

    # [B, 128] -- [B, 10]
    x = self.fc3(x)

    return x



class LeNet1(nn.Module):
"""
    定义一个LeNet
"""

def __init__(self):
    super(LeNet1, self).__init__()

    # 第 1 个阶段
    self.stage1 = nn.Sequential(
        nn.Conv2d(in_channels=1, out_channels=6, kernel_size=3, stride=1, padding=1),
        nn.BatchNorm2d(num_features=6),
        nn.ReLU(),
        nn.MaxPool2d(kernel_size=2, stride=2, padding=0)
    )


    # 第 2 个阶段
    self.stage2 = nn.Sequential(
        nn.Conv2d(in_channels=6, out_channels=16, kernel_size=3, stride=1, padding=1),
        nn.BatchNorm2d(num_features=16),
        nn.ReLU(),
        nn.MaxPool2d(kernel_size=2, stride=2, padding=0)
    )


    # 分类器
    self.classifier = nn.Sequential(
        nn.Linear(in_features=1024, out_features=512),
        nn.Dropout(0.2),
        nn.Linear(in_features=512, out_features=128),
        nn.Dropout(0.2),
        nn.Linear(in_features=128, out_features=10)
    )


def forward(self,x):

    # [B, 1, 32, 32] --  [B, 6, 16, 16]
    h = self.stage1(x)

    # [B, 6, 16, 16] -- [B, 16, 8, 8]
    h = self.stage2(h)

    # 维度转换 [B, 16, 8, 8] -- [B, 1024]
    h = h.view(h.size(0), -1)

    # [B, 1024] -- [B, 10]
    o = self.classifier(h)

    return o


# 构建模型
lenet = LeNet1()

# 参数搬家
lenet.to(device=device)


LeNet1(
    (stage1): Sequential(
        (0): Conv2d(1, 6, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
        (1): BatchNorm2d(6, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (2): ReLU()
        (3): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
    )
    (stage2): Sequential(
        (0): Conv2d(6, 16, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
        (1): BatchNorm2d(16, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (2): ReLU()
        (3): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
    )
    (classifier): Sequential(
        (0): Linear(in_features=1024, out_features=512, bias=True)
        (1): Dropout(p=0.2, inplace=False)
        (2): Linear(in_features=512, out_features=128, bias=True)
        (3): Dropout(p=0.2, inplace=False)
        (4): Linear(in_features=128, out_features=10, bias=True)
    )
    )



# 定义损失函数
loss_fn = nn.CrossEntropyLoss()

# 定义优化器
optimizer = torch.optim.Adam(params=lenet.parameters(), lr=1e-3)

过程监控



def get_loss(dataloader, model=lenet, loss_fn=loss_fn):
    """
        计算平均损失
    """
    # 把模型设置为评估模式
    model.eval()
    losses = []
    with torch.no_grad():
        for X,y in dataloader:
            X = X.to(device=device)
            y = y.to(device=device)
            y_pred = model(X)
            loss = loss_fn(y_pred, y)
            losses.append(loss.item())
        return round(np.array(losses).mean(), ndigits=3)

def get_acc(dataloader, model=lenet):
    """
        计算平均准确率
    """
    # 把模型设置为评估模式
    model.eval()
    accs = []
    with torch.no_grad():
        for X, y in dataloader:
            X = X.to(device=device)
            y = y.to(device=device)
            y_pred = model(X)
            y_pred = y_pred.argmax(dim=-1)
            acc = (y_pred == y).float().mean()
            accs.append(acc.item())
        return round(np.array(accs).mean(), ndigits=3)

训练


def train(dataloader=train_dataloader, model=lenet, loss_fn=loss_fn, optimizer=optimizer, epochs=2):
    print(f"自然准确率：Train_Acc:{get_acc(dataloader=train_dataloader)}, Test_Acc: {get_acc(dataloader=test_dataloader)}")
    # 循环训练epocs轮次
    for epoch in range(1, epochs+1):
        # 把模型设置为训练模型
        model.train()
        # 每轮都按批量训练
        for X, y in dataloader:

            X = X.to(device=device)
            y = y.to(device=device)

            # 正向传播
            y_pred = model(X)

            # 计算损失
            loss = loss_fn(y_pred, y)

            # 梯度清空
            optimizer.zero_grad()

            # 反向传播
            loss.backward()

            # 参数优化
            optimizer.step()

        print(f"Epoch: {epoch}, Train_Acc:{get_acc(dataloader=train_dataloader)}, Test_Acc: {get_acc(dataloader=test_dataloader)}")


train()

自然准确率：Train_Acc:0.104, Test_Acc: 0.104
Epoch: 1, Train_Acc:0.974, Test_Acc: 0.976
Epoch: 2, Train_Acc:0.976, Test_Acc: 0.975

保存


torch.save(obj=lenet.state_dict(), f="lenet_params.pkl")

加载权重


# 定义模型
my_lenet = LeNet1()

# 加载权重
my_lenet.load_state_dict(state_dict=torch.load(f="lenet_params.pkl",weights_only=True), )


def predict(img_path, model=lenet):
    """
        预测图像
    """
    trans=transforms.Compose([
            transforms.Grayscale(),
            transforms.Resize(size=(32,32)),
            transforms.ToTensor()
        ])
    model.to(device=device)
    # 模型设置为推断模式
    model.eval()

    # 读取图像
    img = Image.open(fp=img_path)
    img = torch.unsqueeze(input=trans(img), dim=0).to(device=device)
    with torch.no_grad():
        y_pred = model(img)
        y_pred = y_pred.argmax(dim=-1)
        return y_pred.item()


predict(img_path="/wks/datasets/MNIST/test/7/1001.jpeg",model=my_lenet)
7
